Specifications

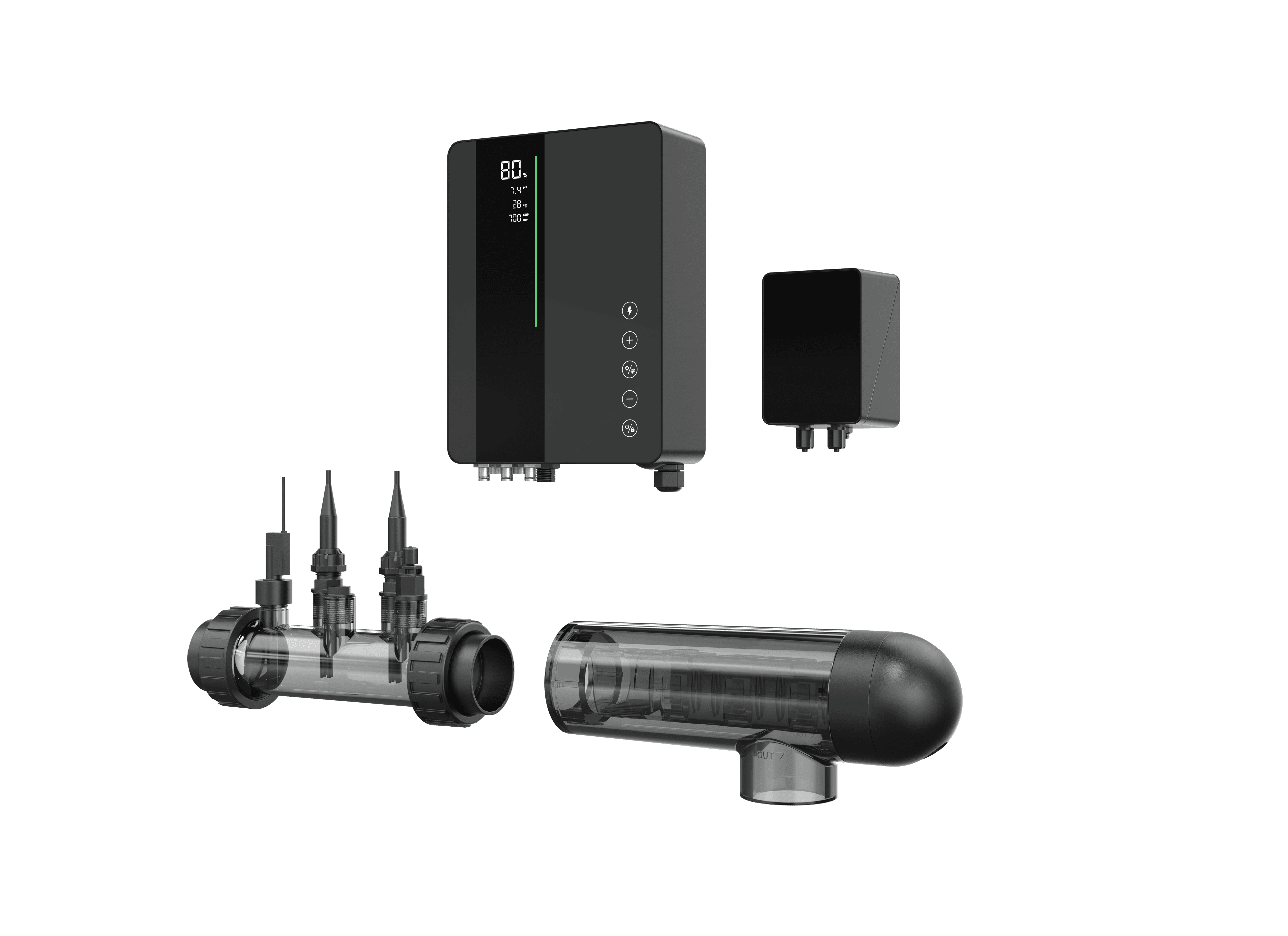

| Product code | ICS10-PH |
|---|---|
| Range | Aqua Purify InverClear |
| Chlorine production | 10 g/h at 3000 ppm salt |
| Recommended pool volume | 15–45 m³ |
| Water flow | 5–18 m³/h |
| Power supply | 100–240 V AC, 50 / 60 Hz |
| Maximum power consumption | 60 W |
| Water temperature | 10–40 °C |
| Cell self-cleaning | 2 / 4 / 6 hour settings; default 4 hours |
| Connectivity | RS485 / Wi-Fi / dry contact |
| Control box dimensions | 270 × 205 × 75 mm |
| Pool sizing conditions | Volumes apply to water at or below 28 °C; reduce recommended volume 25–40% in hot climates |
| Dosing control | pH only |
Manuals and documents
- Download PDF
Aqua Purify InverClear — Brochure
